PU Foam Making Machine Continues

Continuous Polyurethane Flexible Foam Machine For Manufacture Of Sponges Production Line Mattress PU Foam Making Machine Continues

1. This device is mostly used to produce large-scale continuous foam.

2. It adopts advanced touch screen and PLC operating system with high automatization level.

3.The production id low-cost and the quality of foam rubber is outstanding.

4. It is the most ideal equipment for large-scale foaming production.

The PU foam making machine continues is an innovative technology that has transformed the manufacturing industry. It promotes sustainability, efficiency, and flexibility, and it continues to improve to meet the growing needs of the market.

Main Specifications of continues PU foam production line

Product Images



Foam control method:

(1) PLC full process control can continuously change the formula without stopping the machine,

(2) Fully variable frequency with programmable controller to control foaming and achieve real-time synchronization of the production line;

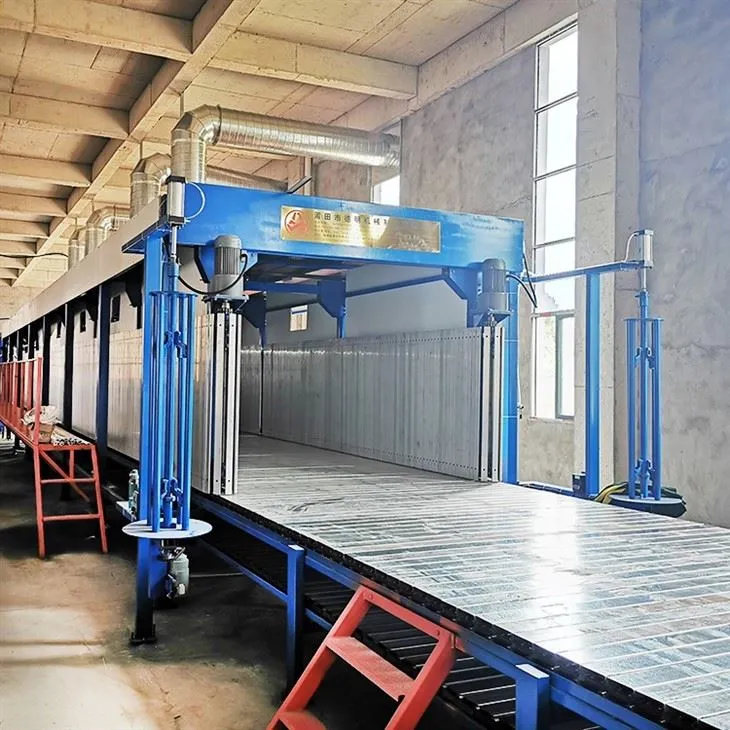

(3) The height of the drying channel drop plate can be electrically adjusted; Equipped with computer screen for automatic control

(4) The side chain plate of the drying channel can be electrically adjusted in width; Equipped with computer screen for automatic control

(5) One set of edge film lifting device on the left and one set on the right. The edge lifting rod can move forward and backward for 3 meters, and the edge lifting rod can lift up and down. The edge lifting angle can tilt up and down

(6) The width of the drying channel edge chain plate is electrically adjusted, using screw transmission, and the upper and lower synchronous screws are retractable

(7) The height of the drop plate is electrically adjusted, and the telescopic track on the plate surface is equipped with linear steel rails and bearing seats for installation

(8) Edge film automatic winding, equipped with a reducer and clutch for automatic winding with variable diameter

(9) There are 2 sets of mixing mixers, 1 set of large mixing head, and 1 set of silicone oil mixer. (Equipped with 1 set of extended mixing chamber and mixing blades)

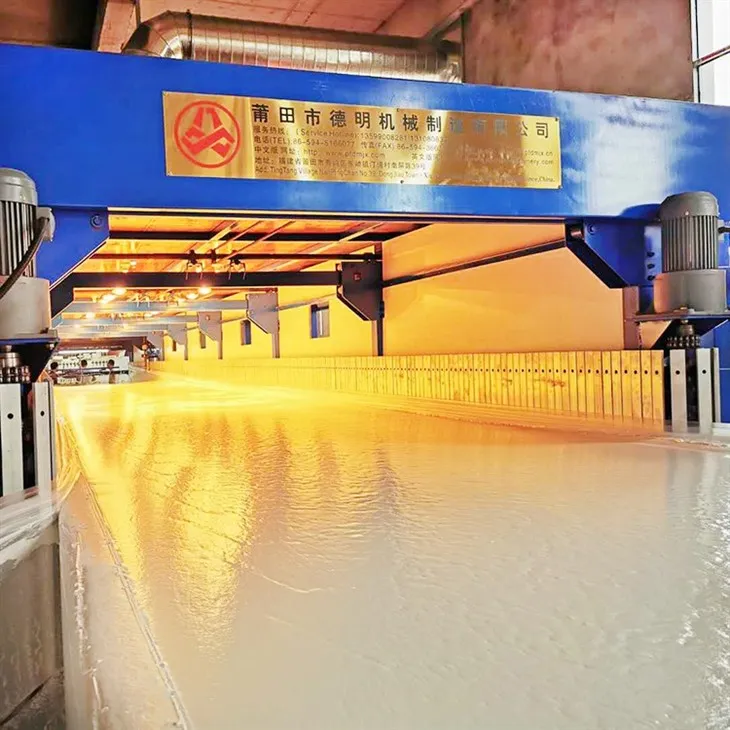

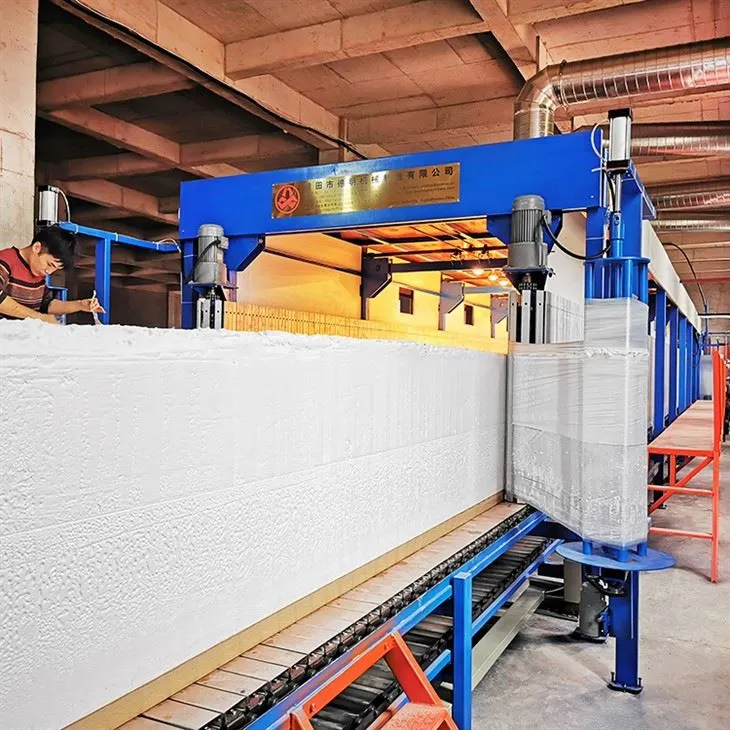

Process: All the P.U. chemicals are first mixed together in a mixing chamber & then taken into a metal trough where the initial reaction takes place. The rising foam then passes from the top of the trough on to a variable width fall plate, which then leads the expanding foam block along a metal slat conveyor for further expansion.







* PIC and HMI control system
* Fast & easy digital wheel panel
* Digital flow monitor and auto-control system
* Dual mode for max foam and liquid lay down foam
* Rising side top flat device
* Fall plate height adjustment and measure
* Side conveyor and fall plate width adjustment
* Side conveyor speed synchronized control system
* Automatic material temperature constant system
* Digital pressure gage
* TDI pump magnetic coupling
* Advanced block cutter

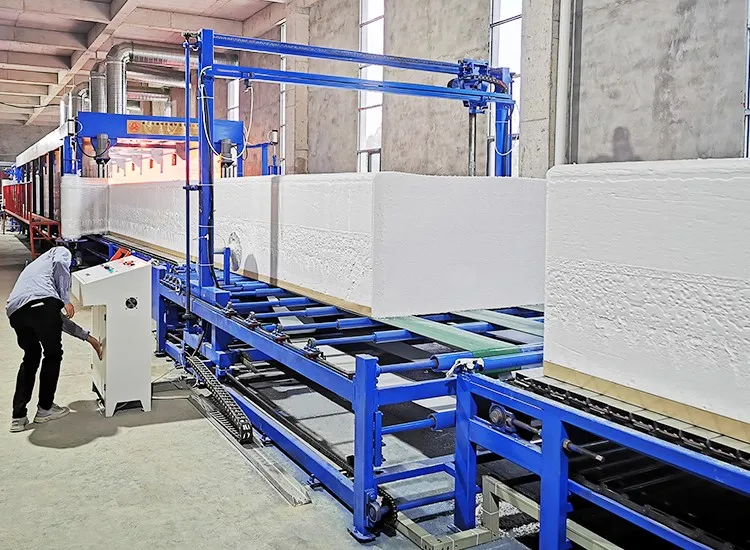

Produced Flexible Foam Display

Some of the parts will be pack in wooden case. Others will be simple pack with paper or foam sheet with plastic film.

Putian Deming Machinery Manufacturing Co., Ltd. is a manufacturer of foam machines and sponge cutter machines with well-equipped production facilities and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in foam, furniture, shoe material and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

We take pride in producing high-quality machinery products and providing excellent services which have earned us the trust of customers both domestically and internationally.
