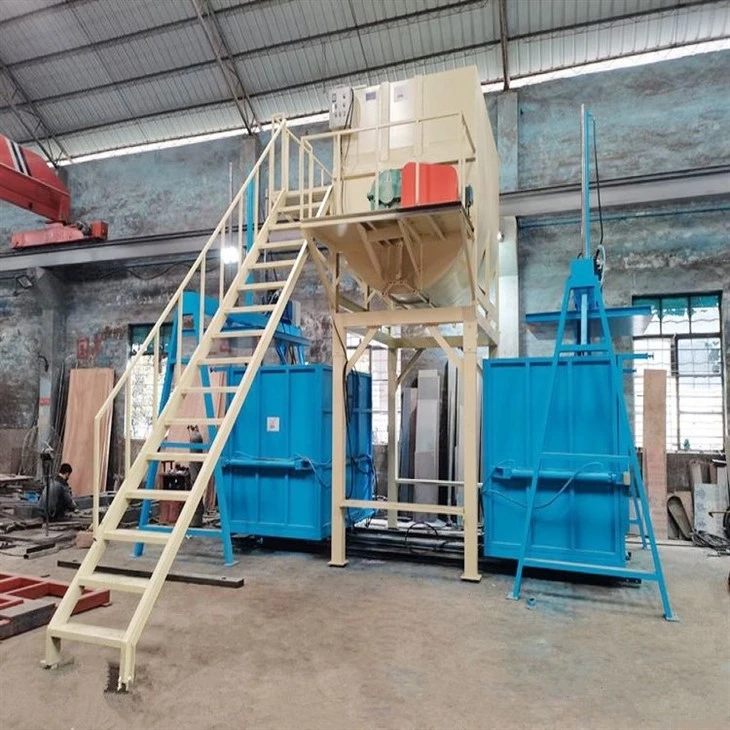

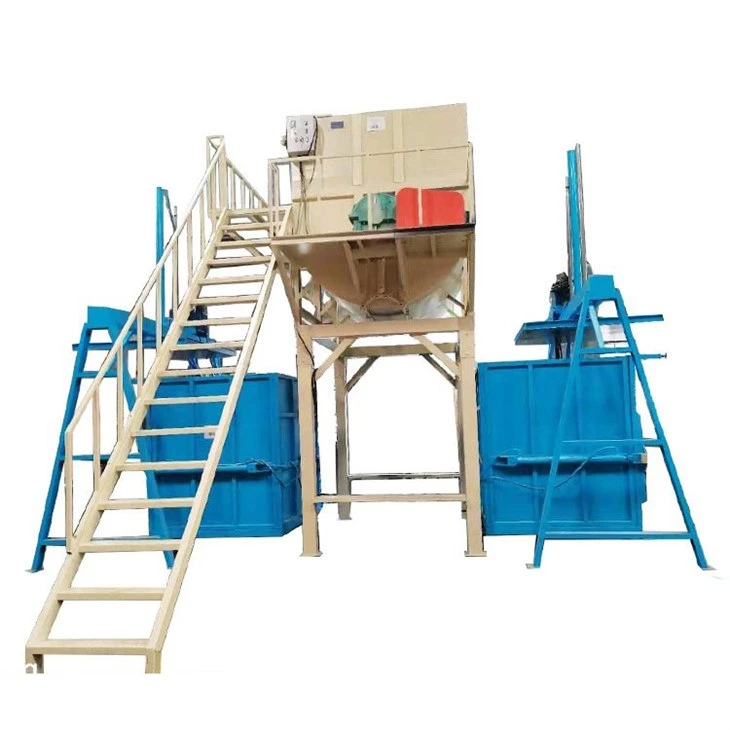

Rebond Foam Machine With Steam Boiler
The Rebond Foam Machine With Steam Boiler is one of the most necessary machine to whom they runs the existing foam manufacturing line, either batch foam plant or continuous foaming plant.
Features
Products Introduction
Mattress rebond foam machine with steam boiler
The Rebond Foam Machine With Steam Boiler is one of the most necessary machine to whom they runs the existing foam manufacturing line, either batch foam plant or continuous foaming plant.
The rebonded means , the rebonding of the foam granules by means of the glue binder and drying it with the steam , providing pressure from the hydraulic press from the top.
The rebonded foaming machine provided by us has cutting edge technology by having all types of adjusting sizes in the machine
Main Parameter
1. Regenerative mixer: (volume: 12m3, power: 11KW), with automatic weighing device.
2. Hydraulic press: pressure 2-10t adjustable
3. Steam foaming mold: (inner cavity size of mold box: 2050 mm long x 2050 mm wide x 1800 mm high).
Automatic foam discharging, automatic die shifting mechanism.
4. Steam generator: displacement 500kg per hour (using electric heating) (power: 432KW)
5. Power supply: three-phase 380V 50HZ
Product Images
Manufacturing Process :
The scrap foam is shredded with the help of the Foam shredding machine and these foam shredded pieces are feeded directly onto the mixing vessel of the rebounded foam machine.
Now 10% of the total weight of the foam granules are added into them as their binder chemical.
The binder chemical will now mixes with the foam granules for at least 15 minutes and these mixed pieces are poured automatically into the pressing mould and from the top hydraulic press , with moving steam from the bottom releases at the same time and we get desired density of the rebonded foam.
| Packaging & Delivery |
Packing Details: Standard
The machine will be consolidated tighly and safely within container and deliver by sea.
Port: XIAMEN
FAQ
Q.Are you a factory or a trade company?
A: We are professional manufacturer,direct supplier from China.
Q. What is your quality guarantee terms?
A: Quality guarantee term is for one year. Malfunctions which are caused by machineself and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
Q. How do you help with the installation?
A: Engineer is available to serve over sea if needed.
Q: The voltage in our country is different from yours,does the machine can be changed?
A:Yes of course. Please let us know the voltage of your country's.
We are dedicated in providing a high-quality line of foam cutting machines, driven by many years of industry expertise.
Welcome to contact us for further discussions!
