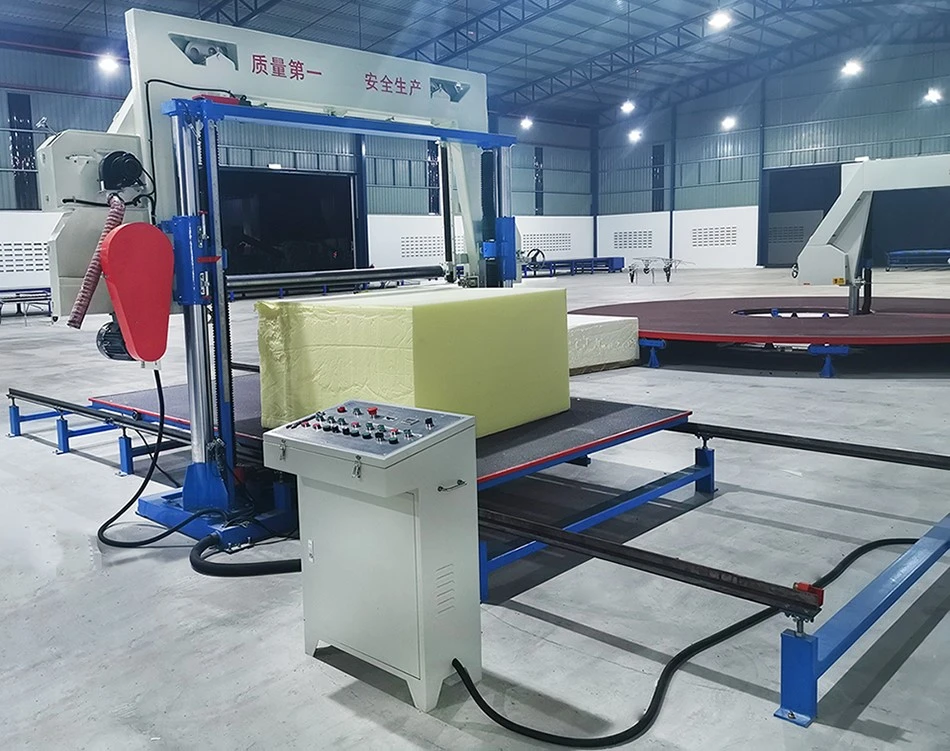

Horizontal Foam Cutting Machines: Common Faults and Solutions

During the operation of horizontal foam cutting machines, the cutting dimension may occasionally become inaccurate, such as inconsistent front and rear cuts or fluctuating sizes. There are three main causes for this type of fault: encoder abnormality, knife wheel wobble, and electrical system failure. The corresponding solutions are described below.

1. Encoder abnormality

The encoder is a core component for controlling cutting precision. If the cutting dimension is inaccurate, first check whether the encoder is firmly installed, whether it was impacted during transportation, and whether the encoder shaft is concentric with the main shaft. The encoder operates on 24V low-voltage power and normally has a long service life. Most faults are caused by human factors, such as wiring errors or external impact.

2. Knife wheel wobble

When the knife wheel wobbles, it is usually necessary to replace the bearings inside the wheel. If the wheel itself is severely worn, replace it directly. If the wheel was not installed on the same vertical line, contact the after‑sales service personnel of the equipment manufacturer for adjustment.

3. Electrical system failure

In the electrical control cabinet, the components that directly affect cutting dimensions are mainly the counter and the encoder. Electrical faults carry certain risks. Repair work must be carried out by a qualified electrician referring to the electrical schematic diagram provided by the manufacturer. Do not attempt blind operation on your own.

Safety tips

The blade of a Horizontal Foam Slitter is very sharp and rotates at high speed. Before operation, ensure that the equipment is reliably grounded and strictly follow the operating instructions. The main components include the machine base, blade holder, worktable (to be provided by the user, can be made of concrete or steel), rails, and electric control panel. Among these, the blade holder area is the most dangerous. Keep a safe distance during operation to avoid body contact and prevent serious injury.

Conclusion

Proper use and maintenance of a Horizontal Foam Slitter not only extend its service life but also effectively ensure operator safety. We hope the above fault analysis and solutions help you quickly resolve practical production problems. If you encounter a fault that cannot be fixed by yourself, please contact professional maintenance personnel in a timely manner. Do not operate the foam slitting machine while it is faulty.
